Please follow these directions for the following products to avoid leaks, clogs, and other issues. Failure to adhere to these practices may invalidate your warranty.

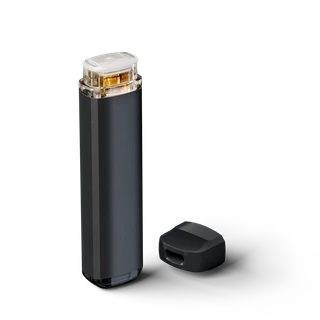

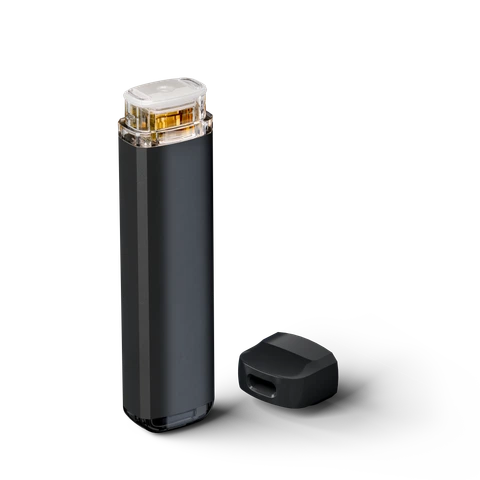

Axil Mini Air All-In-One Filling Directions
Recommended Needle Size | Ideal Fill Temperature | Capping Time |
|---|---|---|
16-20ga | 90°F/32°C (thinner oils) – 135°F/57°C (thicker oils) | 8-10 mins (depending on viscosity) |
Keep your devices vertical to ensure optimal saturation.

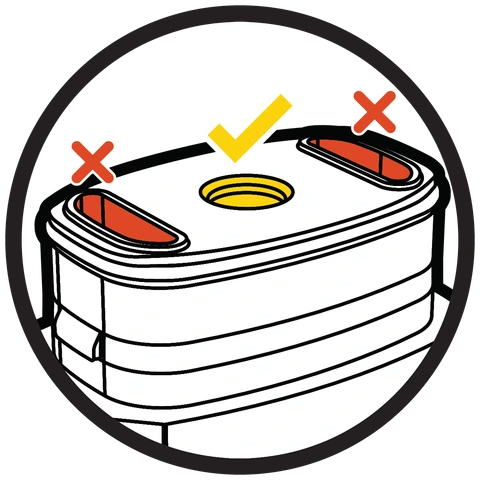

Insert a blunt tip 16 to 20 gauge needle into center filling hole.
Caution: Do not allow the filling needle to touch the ceramic core or you may cause damage.

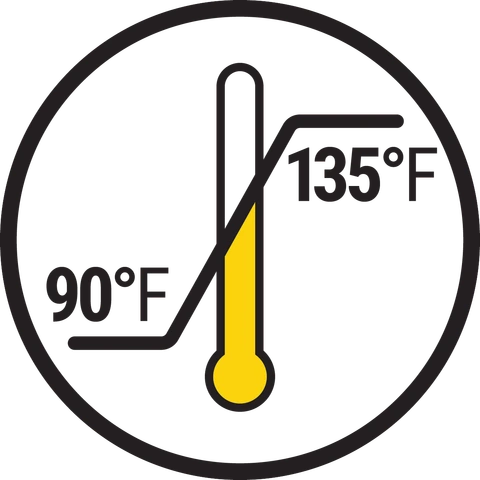

The recommended oil temperature range at time of filling is 90°F-135°F. The ideal fill temperature will allow for filling and capping before the oil saturates the atomizer.

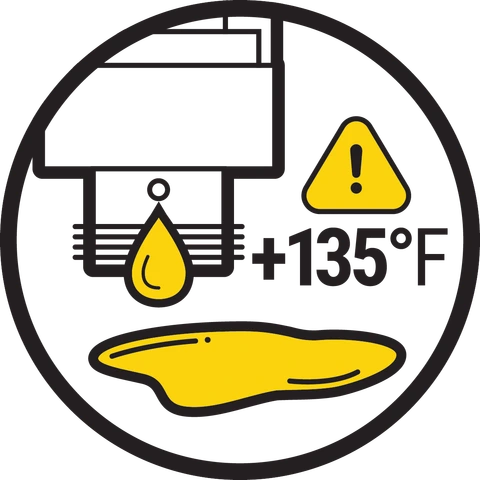

Oversaturation from hot filling, thin oils, and/or slow capping will cause flooding, clogging and leaking.

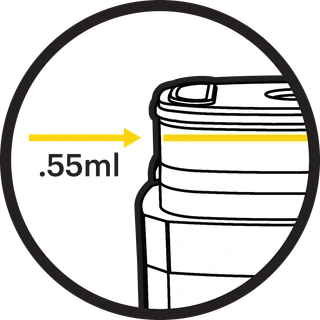

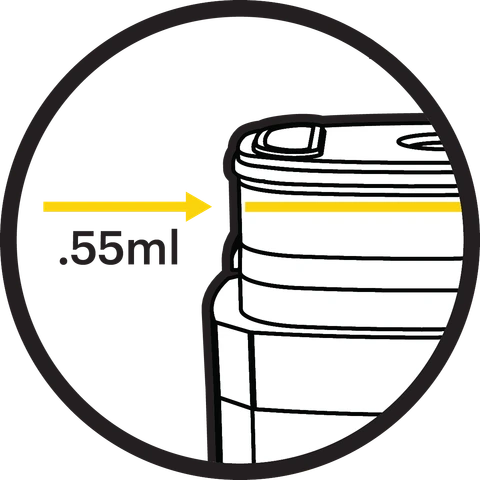

Do not overfill your devices! Fill to a maximum of 0.55mL. Overfilling may cause seal bulging and will force fluid through the atomizer.

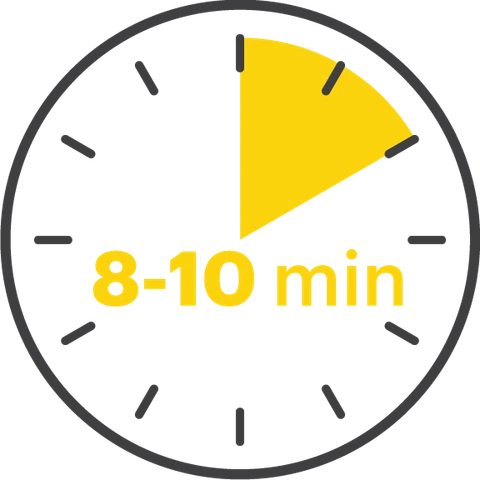

Cap within 8-10 minutes after filling. We recommend a shorter period of time for thinner oils. Immediately after filling, cap the device with the mouthpiece until it’s fully seated.
Axil Mini Air All-In-One Capping Directions
Capping time | Capping Method | Minimum capping force | Maximum capping force |
|---|---|---|---|
8-10 mins | By hand or arbor press | 15-17lbs (7-8kg) | 130lbs (59kg) |

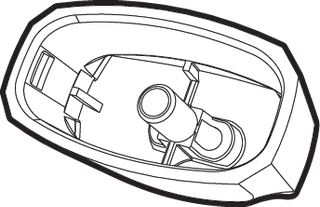

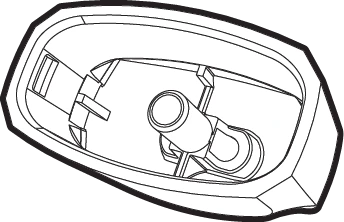

Ensure you use the air postless mouthpiece when capping your device.

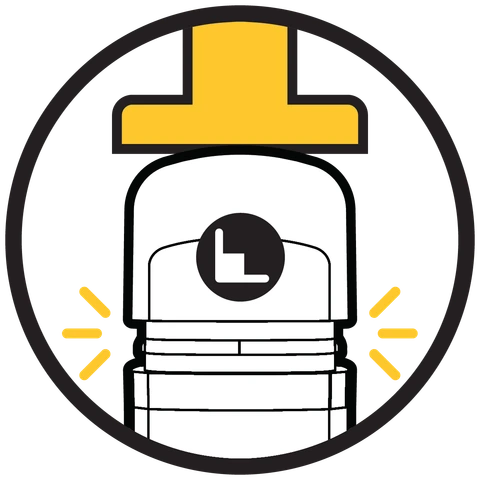

Make sure the mouthpiece is properly aligned and straight. Press the mouthpiece down vertically (not at an angle) using even pressure, until you hear a click.

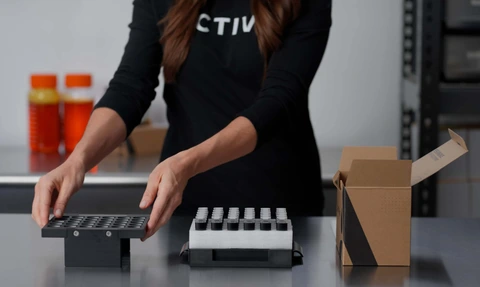

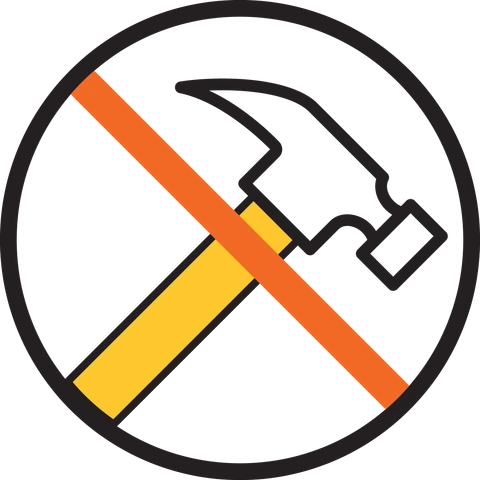

You can seat the mouthpiece by hand, but a light-duty arbor press and jig are recommended. Do not use a hammer or mallet!

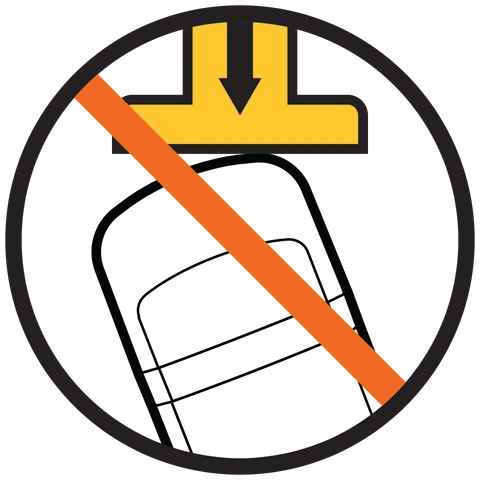

Pressing at an angle can lead to damage, improper sealing/bulging, leakage, and cracking of the glass tank.

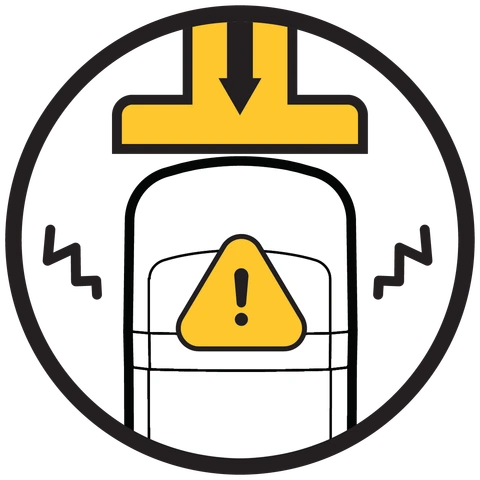

If too much pressure (over 130lbs) is applied during capping,you can damage the device and the battery. Check the pressure carefully.

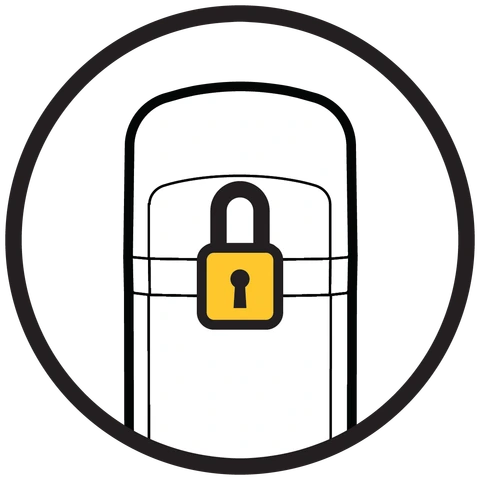

You cannot remove the mouthpiece once it’s fully seated without damaging the device or the mouthpiece.
Let your device stand for a minimum of 24 hours before using. During this time, the oil is priming the atomizer.
FIFO (first in, first out) advisory:
Proper forecasting and inventory management are crucial for the best performance of battery products. Battery products that are not used within 1 year can experience battery degradation and discharge and may need to be charged before they are distributed. We recommend ensuring first-in, first-out inventory practices and not distributing battery products more than 6 months after delivery.
