Please follow these directions for the following products to avoid leaks, clogs, and other issues. Failure to adhere to these practices may invalidate your warranty.
![](/images/products/all-in-ones/active-node/opt/resources.1-320w-1x.webp)
Node Filling Directions
Recommended Needle Size | Ideal Fill Temperature | Capping Time |
---|---|---|
18-20ga | 90°F/32°C (thinner oils) – 135°F/57°C (thicker oils) | 3 mins or less (depending on viscosity) |

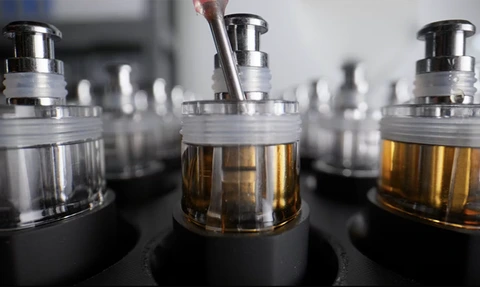

- Insert a blunt tip 18 to 20g needle into the space between the center airway tube and the inner wall of the cartridge body.
Caution: Do not allow oil to enter the center airway. - 90°F/32°C (thinner oils) | 135°F/57°C (thicker oils)
The ideal fill temperature will allow for filling and capping before the oil saturates the atomizer. - Oversaturation from hot filling, thin oils, and/or slow capping will cause flooding, clogging and leaking.
- Do not overfill your devices! Fill to a max of 1.04mL or 2.5mm from the top of the tank. Overfilling may cause seal bulging and will force fluid through the atomizer.
- Cap within 3 minutes after filling. We recommend a shorter period of time for thinner oils. Immediately after filling, cap the device with the mouthpiece until it’s fully seated.
Warning: Do not use fast or hight powered chargers that output more than 5v 1a. This may damage the battery.
![](/images/filling-directions/opt/tip-2-320w-1x.webp)
Node Capping Directions
Capping time | Capping method | Minimum capping force | Maximum capping force |
---|---|---|---|
3 mins or less (depending on viscosity) | By hand or arbor press | 28-35lbs (13-16kg) | 44lbs (20kg) |

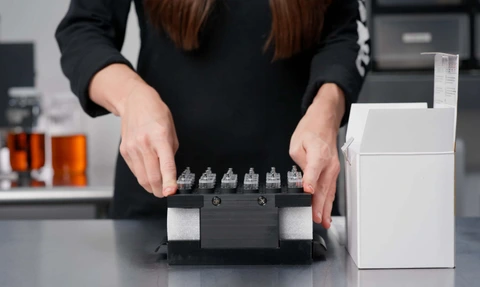

- Make sure the mouthpiece is properly aligned and straight. Press the mouthpiece down vertically (and not at an angle) using level, even pressure, until you hear a click. This sound indicates the mouthpiece is fully seated.
- You can seat the mouthpiece by hand, but a light-duty arbor press and jig are recommended. Do not use a hammer or mallet.
, improper sealing, leakage, and cracking of the device. - If too much pressure is applied during capping, you can damage the device and the battery. Check the pressure carefully.
- You cannot remove the mouthpiece once it’s fully seated without damaging the device or the mouthpiece.
- Let your devices stand for between 30 minutes to 12 hours before using. During this time, the oil is priming the atomizer. More viscous oils will require more time.
Warning: Do not use fast or hight powered chargers that output more than 5v 1a. This may damage the battery.
![](/images/filling-directions/opt/tip-2-320w-1x.webp)
FIFO (first in, first out) advisory:
Proper forecasting and inventory management are crucial for the best performance of battery products. Battery products that are not used within 1 year can experience battery degradation and discharge and may need to be charged before they are distributed. We recommend ensuring first-in, first-out inventory practices and not distributing battery products more than 6 months after delivery.
